Chemical Industry Dust Removal Series

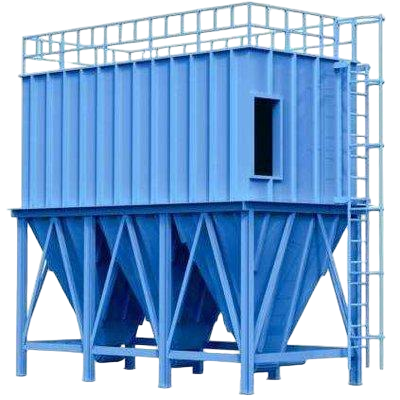

Pulse-Jet Baghouse Dust Collector

Operation Principle:

Dust-laden air enters the unit; coarse particles settle immediately

Fine particles captured by filter bags; purified air discharges

When differential pressure reaches preset value:

Control unit activates pulse valves

Compressed air (0.4-0.6MPa) blasts through nozzles

Dust dislodged from bags

Technical Advantages:

Collection Efficiency: >99% (ISO 16890 certified)

Airflow Capacity: 5,000-100,000 m³/h

Compact Footprint: 30-40% space saving vs. cyclones

Maintenance: Quick-release bag access

Industrial Applications:
Metallurgical plants | Chemical processing | Cement production | Woodworking
